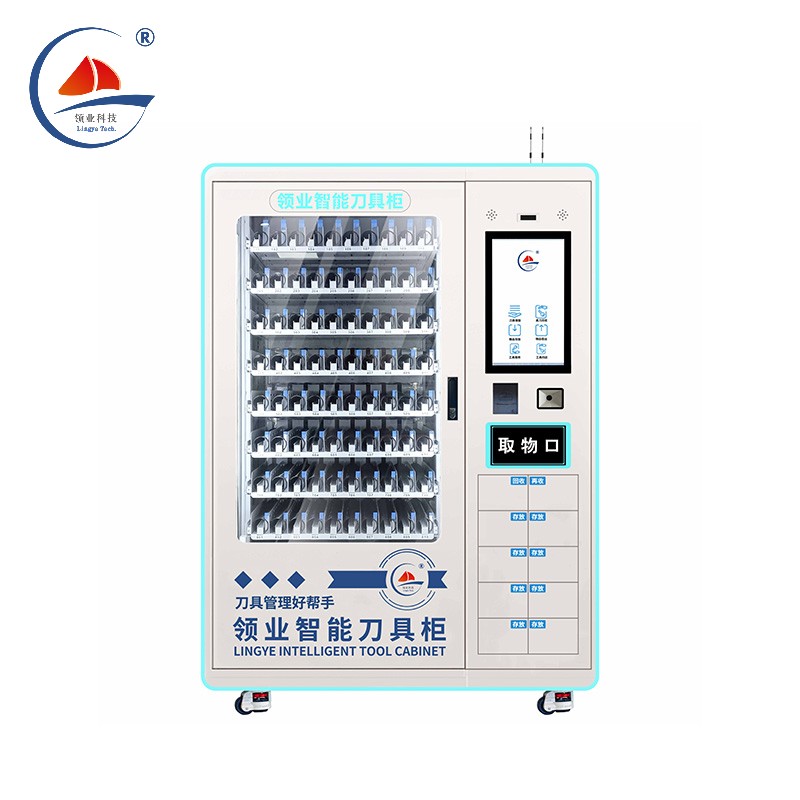

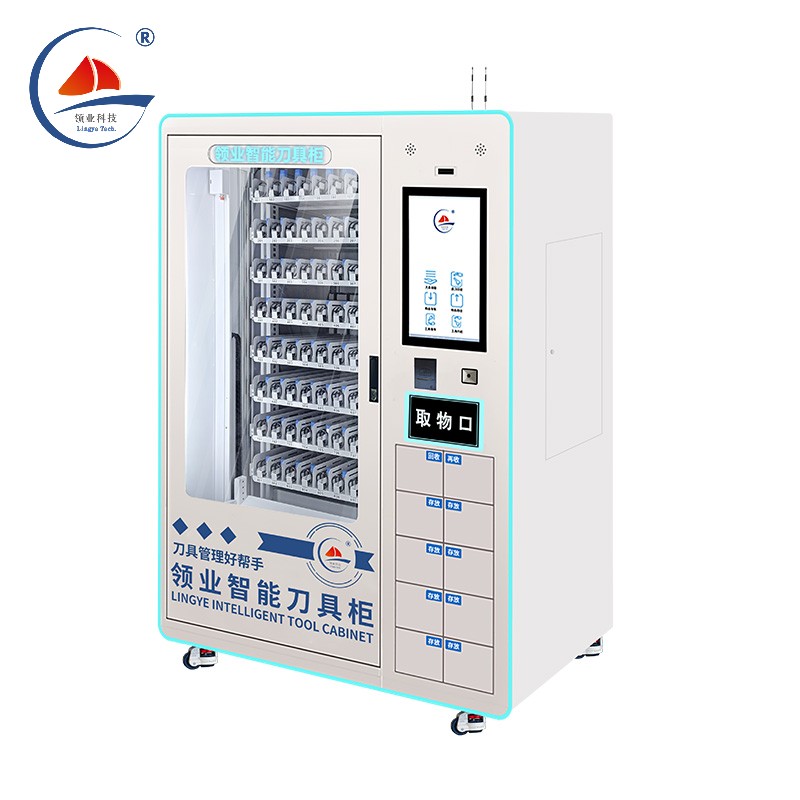

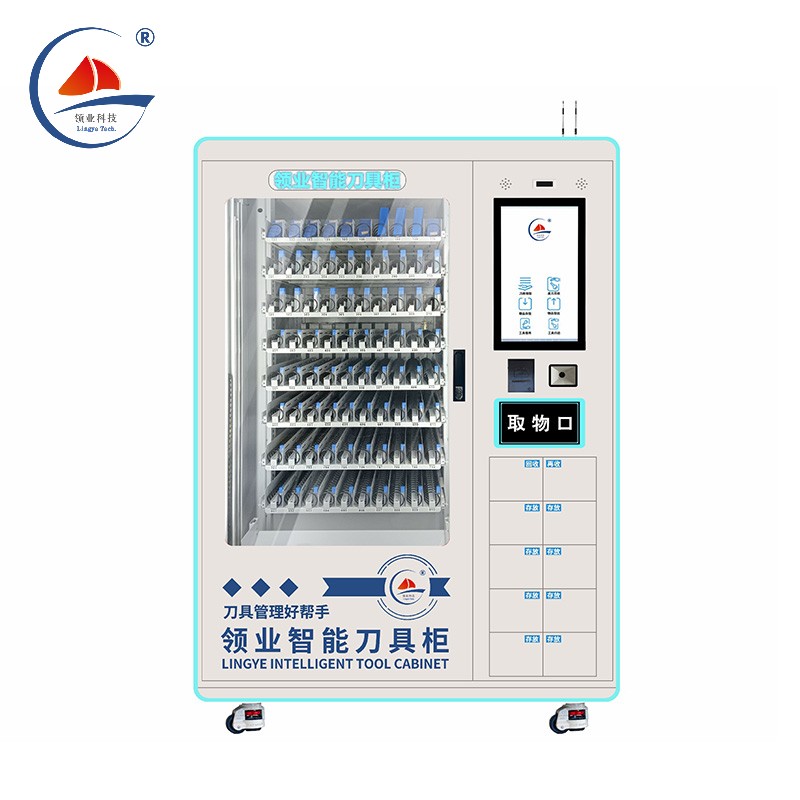

Intelligent cutter cabinet

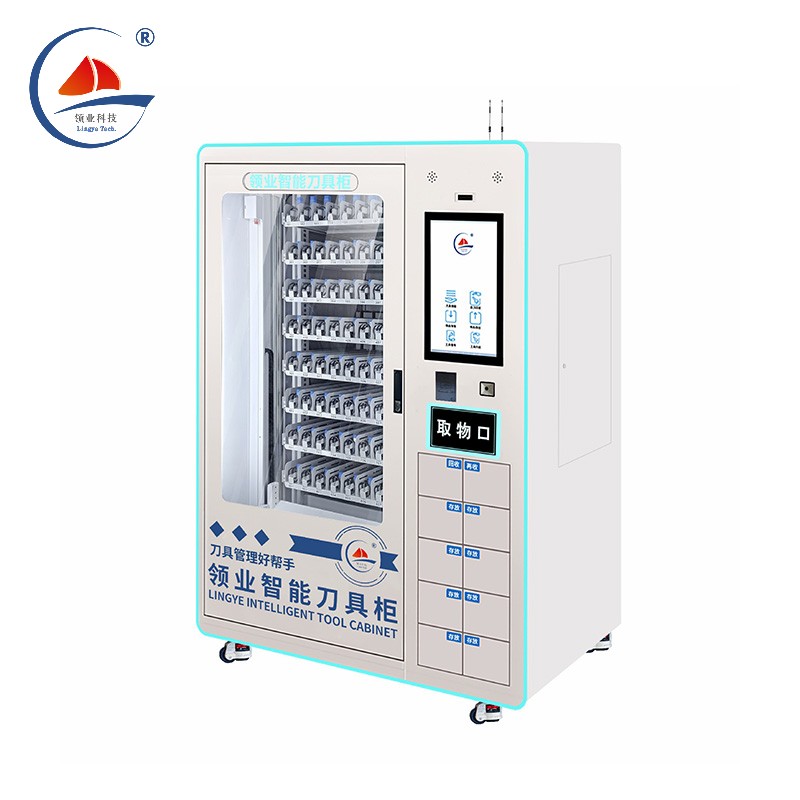

LY-SJXY80-10
Product details

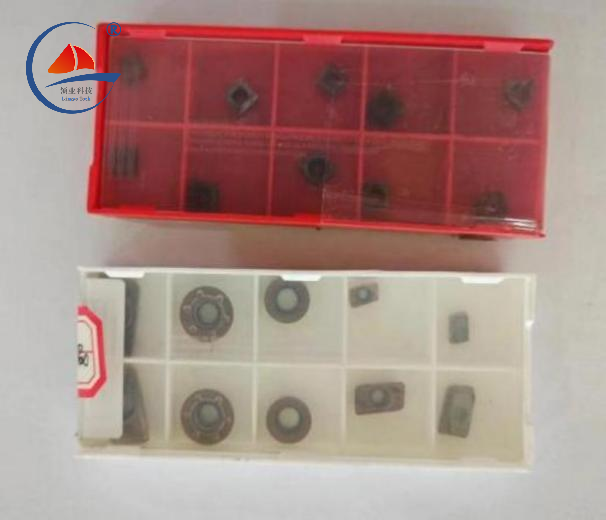

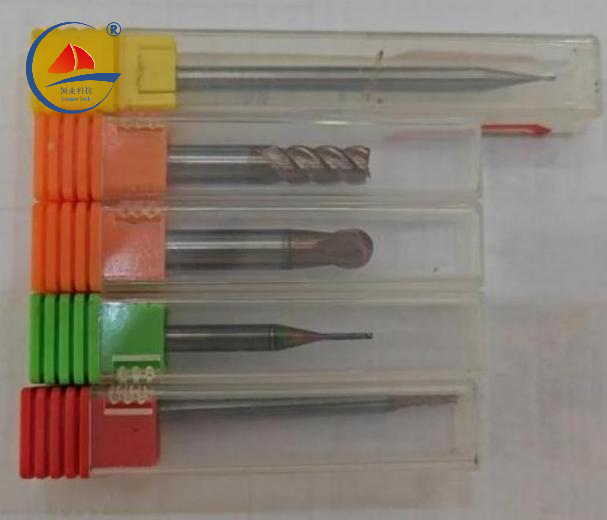

The part of the machine that can hold tools: tool inserts, milling cutters, taps, drill bits (illustrated below)
Product Parameters

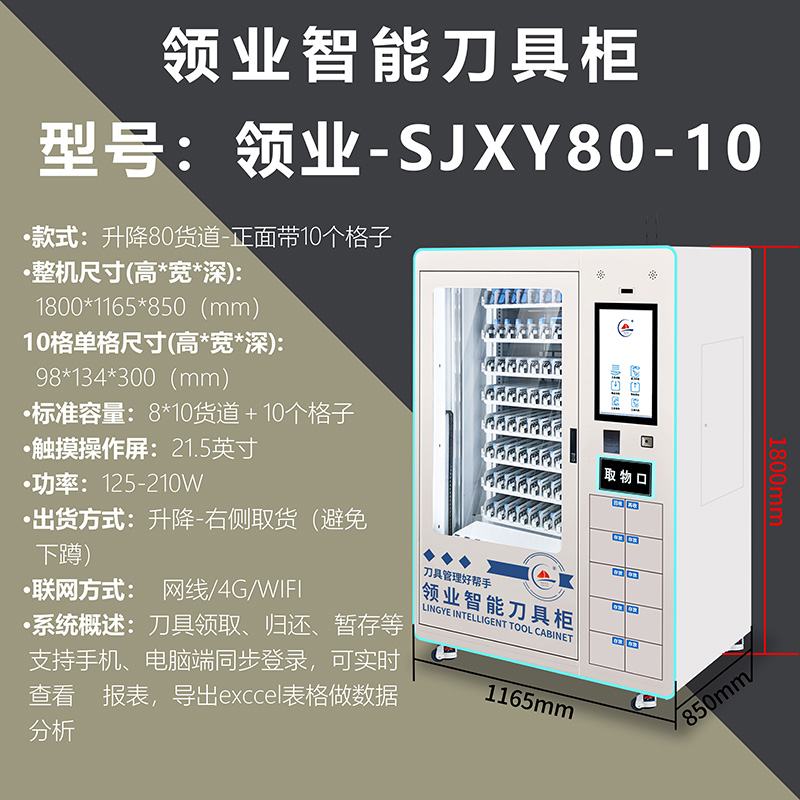

Model | LY-SJXY80-10 |

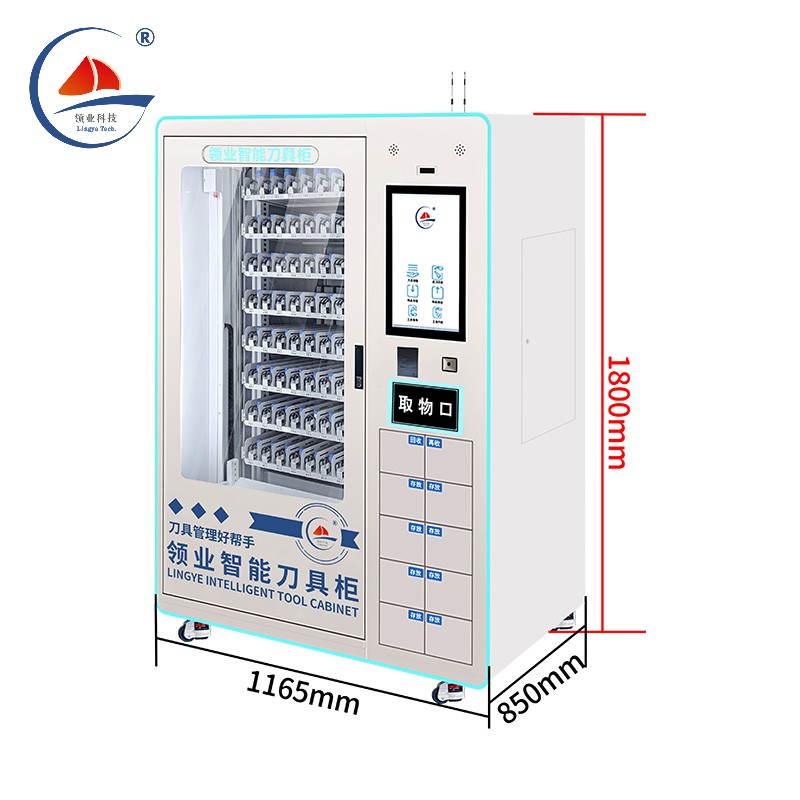

Overall Dimensions | 1793*1165*850 (mm) |
Single Grid Size | 98*134*300 (mm) |
Body Color | Standard white, customizable in other colors |
Net weight of the machine | Approximately 425 kg |
Product type | Cutting inserts, tools |
Product inventory | Adjust according to the actual tool size |
Capacity specifications | 80 lanes, standard 8 layers, 10 lanes per layer |
Rated power/voltage | 220V-250V; ≤ 320W |
Screen | 21.5-inch Touch Screen |
Shipping Method | XY axis lifting, middle delivery |
Configuration Parameters
● Standard 21.5-inch display, capable of playing videos and images. Remote real-time control, updates, and multimedia video publishing can be achieved through wired, WIFI, 4G, and other networks.
● Customizable grid function, can be used as a tool cabinet, recycling cabinet, or storage cabinet.
● Extra-large glass showcase display, intuitive product display, easy to use.
● LED light strips, clear and bright inside the box, large-capacity customizable货道, aluminum alloy lock for safety assurance.
● Inventory warning, the management backend can set the stock alert number for individual products to meet the demand for restocking reminders.
● Data analysis, the management backend generates various summary reports.
● The backend control system has management functions for data query, statistics, accounting, and fault information.
● A powerful cloud service management platform allows for real-time online queries of the inventory and operational status of each tool cabinet from anywhere.
